Compression Flow Process

Compression Flow Process

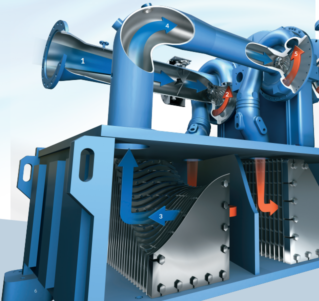

1. Ambient air enters the first stage through the inlet control device.

2. The first-stage impeller accelerates the air. A radial diffuser converts the air’s velocity into pressure before the air enters the scroll casing.the first stage through the inlet control device.

3. The air is conducted through interstage piping into the first intercooler

4. The cooled air then flows into the second-stage inlet piping.

5. The compression process is repeated as the air passes through the second stage impeller, diffuser, and scroll casing and then into the second intercooler.

6. Air from the second intercooler moves through a third impeller, diffuser, and scroll casing.

7. Air is discharged into the aftercooler and air system.
